(click photos to enlarge)

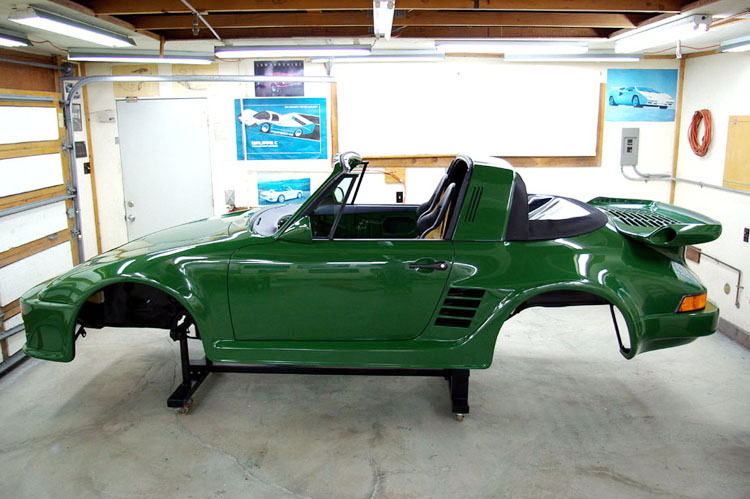

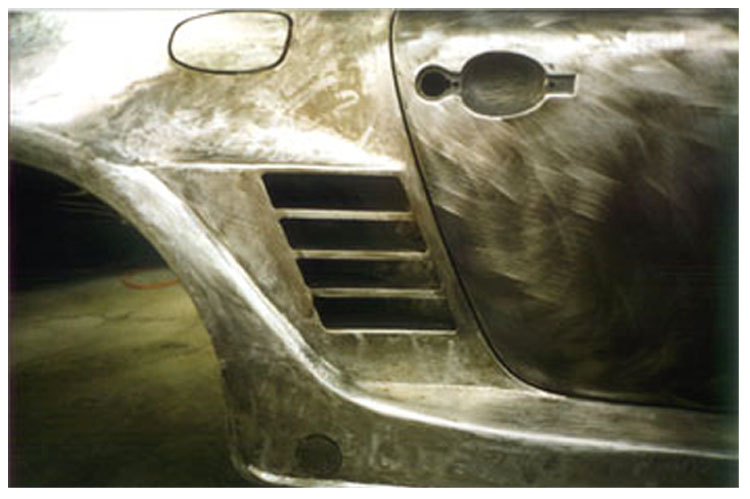

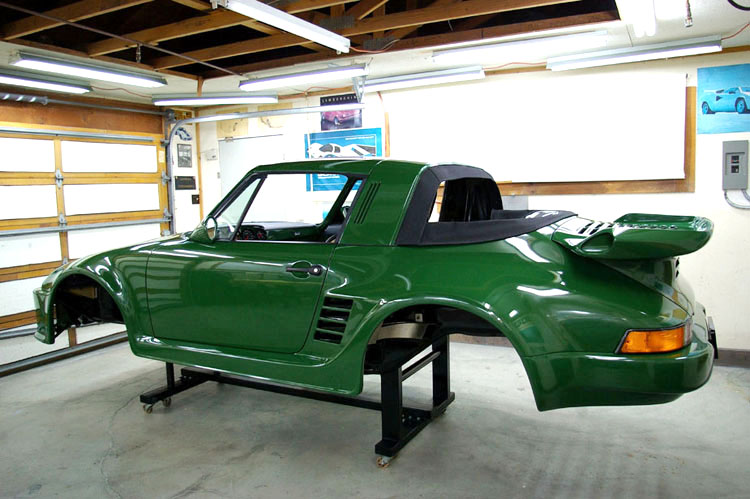

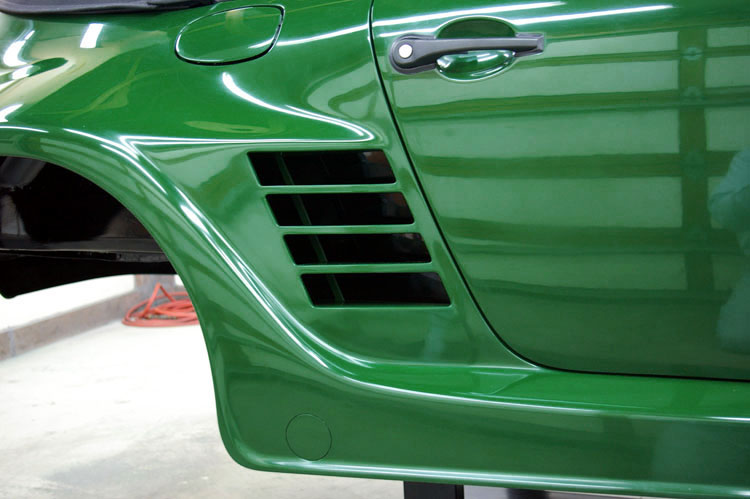

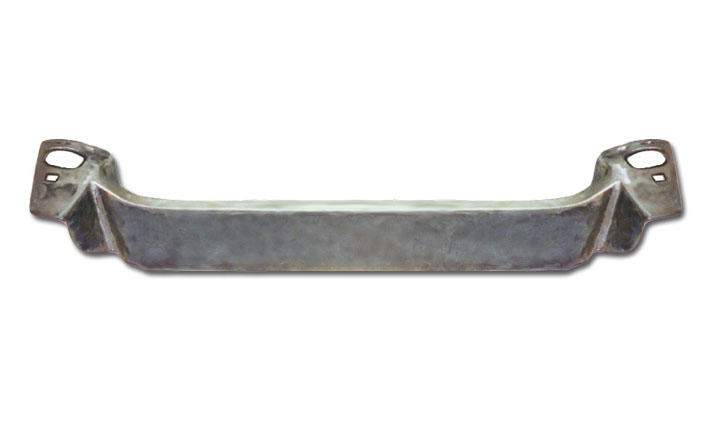

(1) Sheet metal and tubing intake grilles for engine air induction & rear brake rotor cooling ducts. (2) Bare steel rear quarter panel, intake grille, oil tank filler access door, and rocker panel. (3) Completed rear quarter panel, intake grille, oil tank filler access door, and rocker panel. (4) Rear vented steel latch panel, oil tank filler access pull handle, and enlarged Targa script, roll bar diagonals, reinforced rear shock cross member, and rectangular tubing reinforced longitudes. (5) Front steel rectangular tubing strut cross member with reinforced steel camber plate mounts. (6) Front chassis steel reinforcement components.

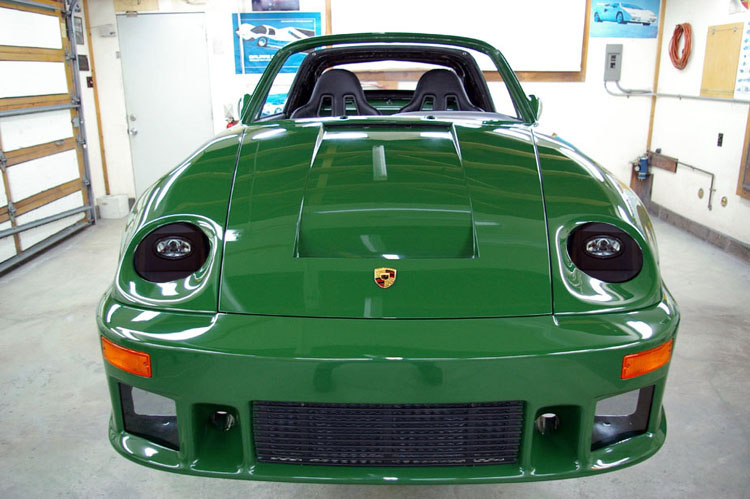

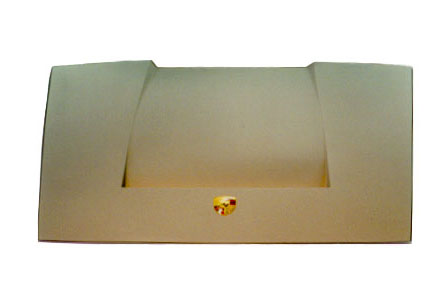

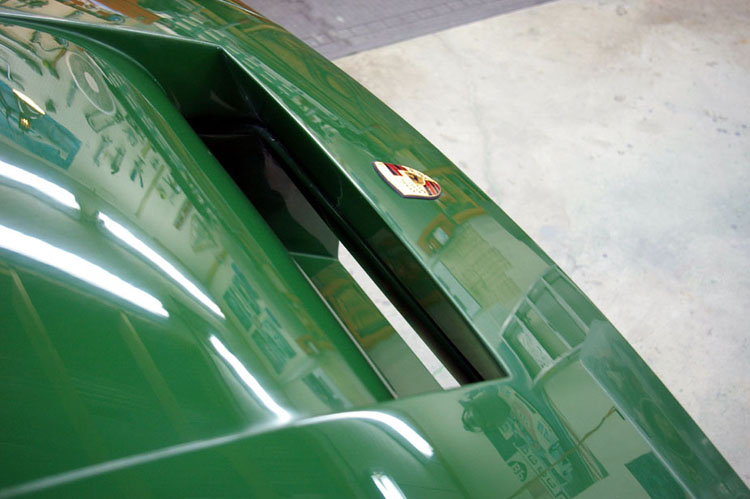

(1) Aux front oil cooler ducted steel hood. (2,3) Aux front oil cooler mount, and showing ducted air passage through hood. (4,5,6) Fiberglass/Kevlar bumpers, top, and air scoop full-flow tail, widened stainless Targa roll bar cover with widened quarter panel/chassis mounts for use of Cabriolet top zip down window & material, square steel tubing illuminated license plate frame and aluminum mounting plate.

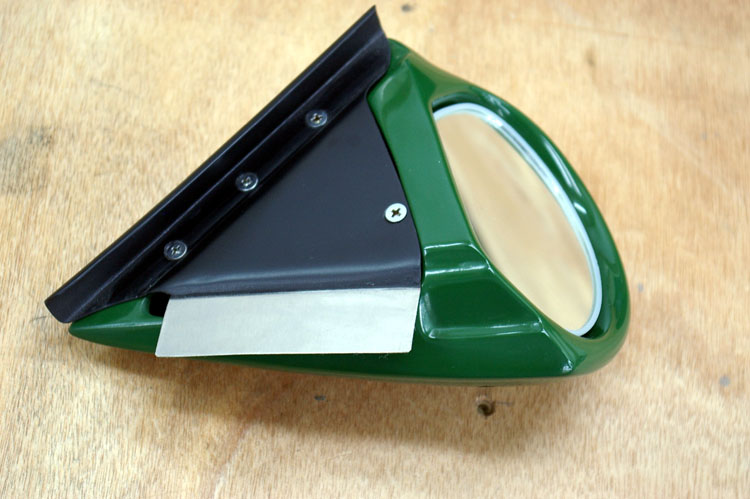

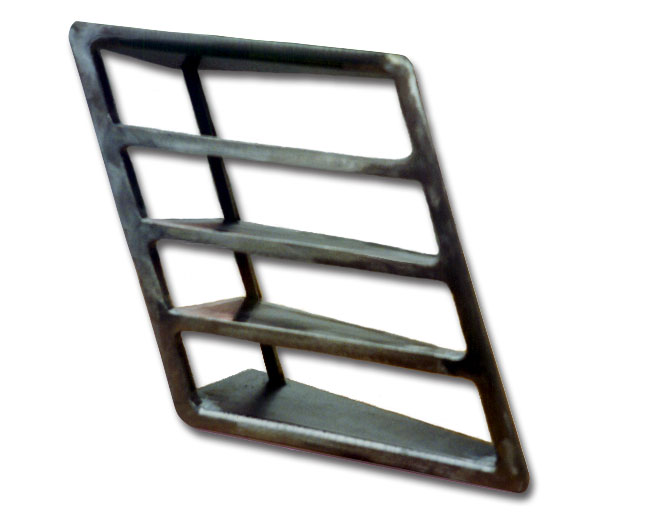

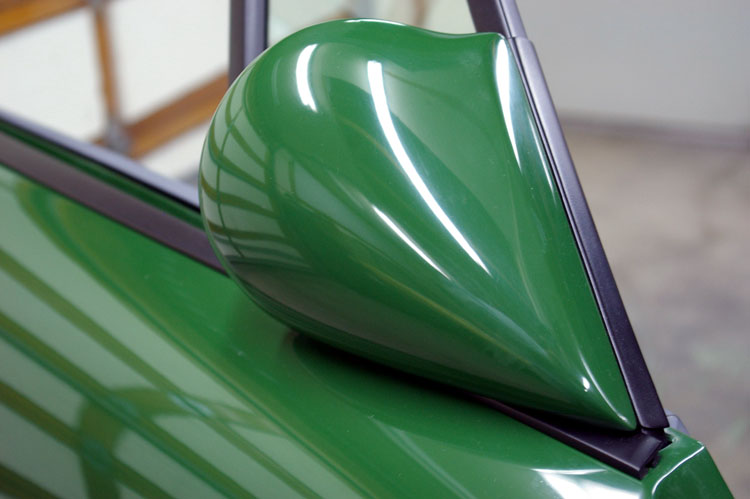

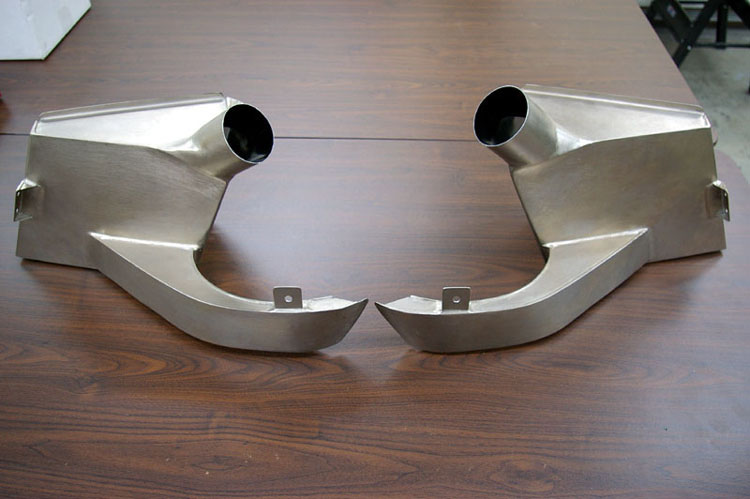

(1) Fiberglass/Kevlar bumpers, glass covered steel & aluminum head light assemblies, and aux front oil cooler grille. (2,3,4) Door glass frame stainless and aluminum hook & slide mounted 935 style mirrors. (5) Turbocharger steel tube and sheet metal intake grilles. (6)  Back sides of turbocharger air induction & rear brake rotor cooling ducts.

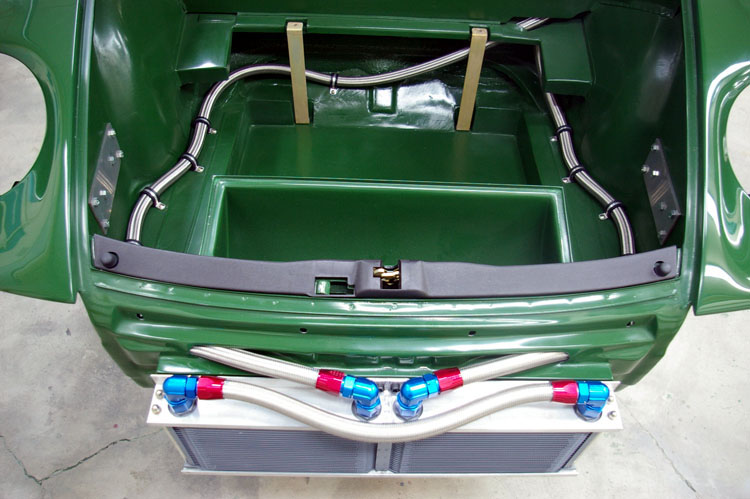

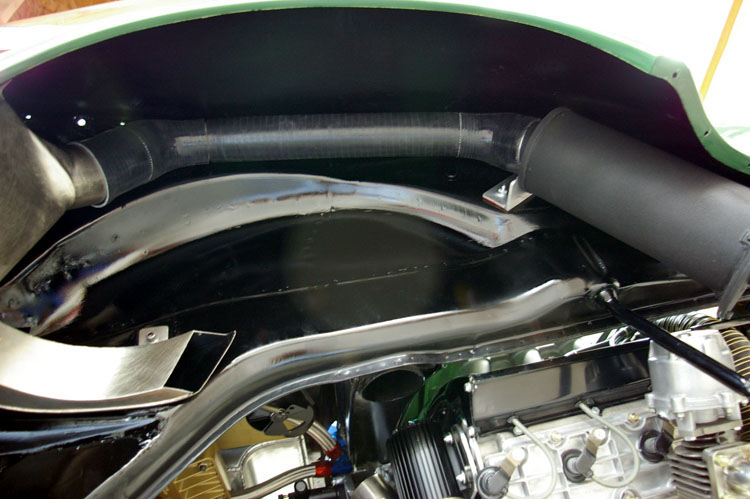

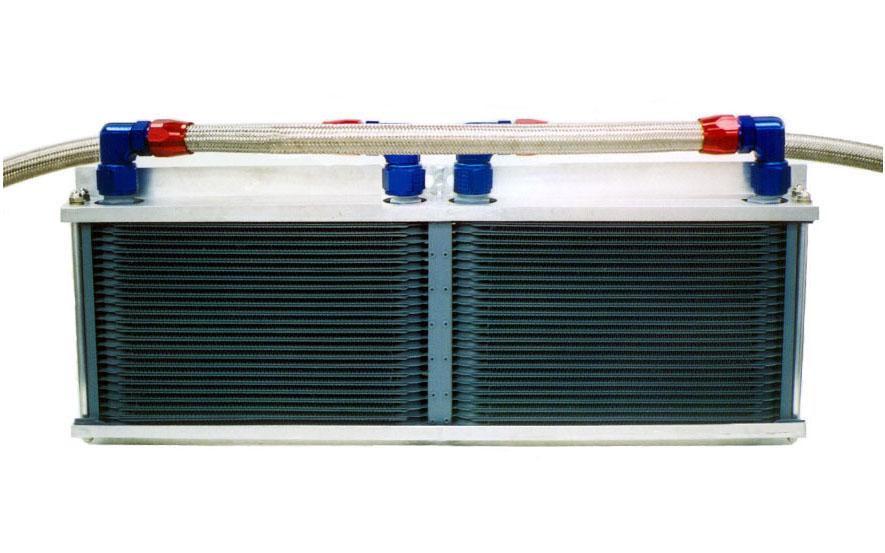

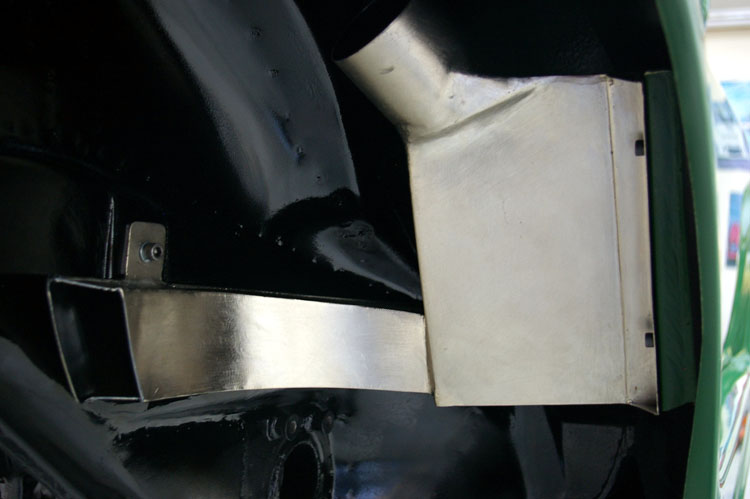

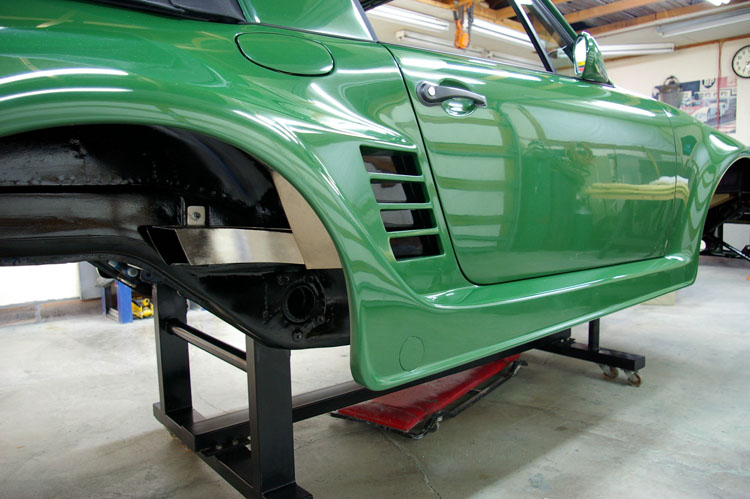

(1) Rear of turbocharger air induction & rear brake rotor cooling ducts. (2,3) Right side turbocharger air induction & rear brake rotor cooling duct mounted to steel tube intake grille inner fender and chassis. (4)  Dual front aux oil coolers. (5,6) Dual front aux oil coolers mounted to duct framing and chassis.

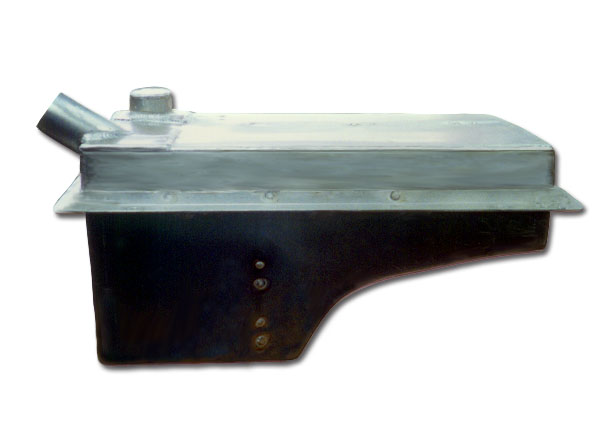

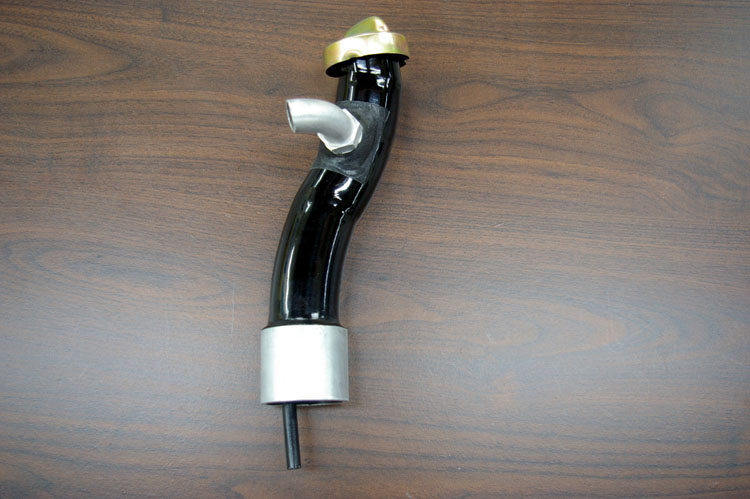

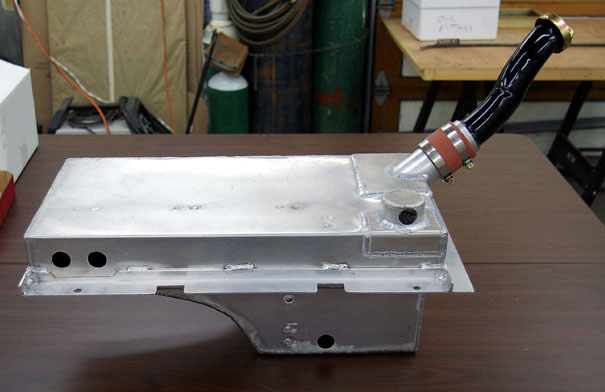

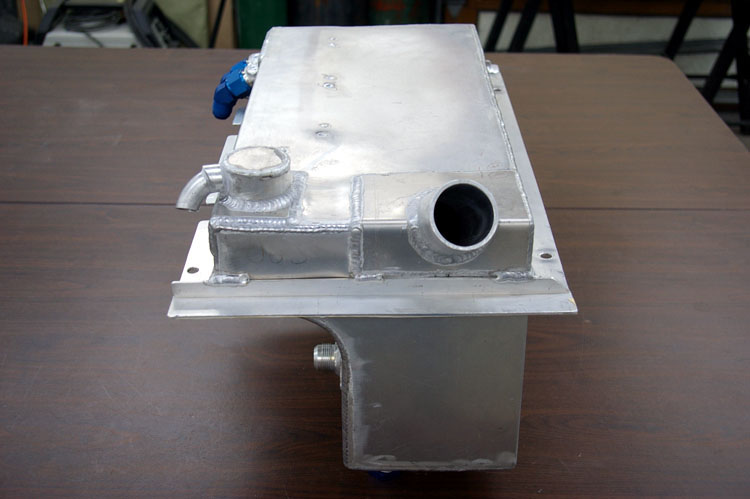

(1) Chassis tube sub  frame and mounting brackets for oil tank. (2,3) Aluminum oil tank. (4) Oil filler with breather tube. (5) Oil tank with filler attached. (6) Oil tank mounted location in sub chassis.

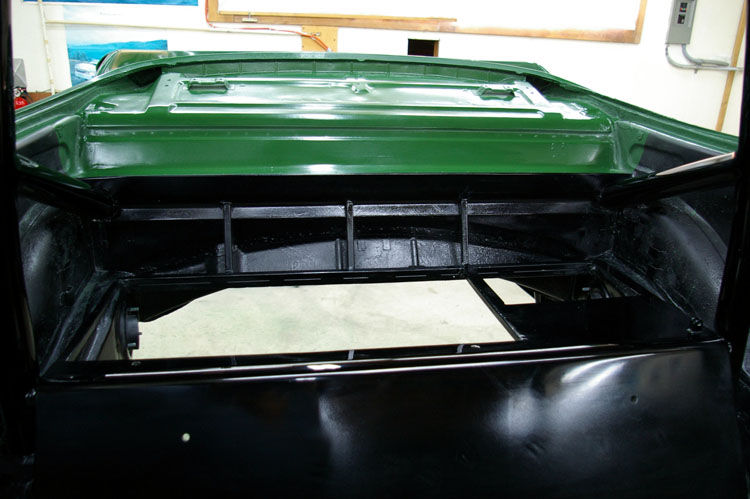

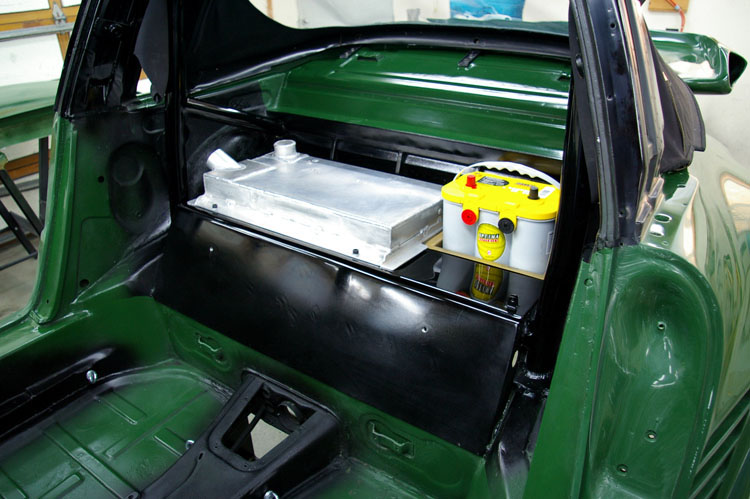

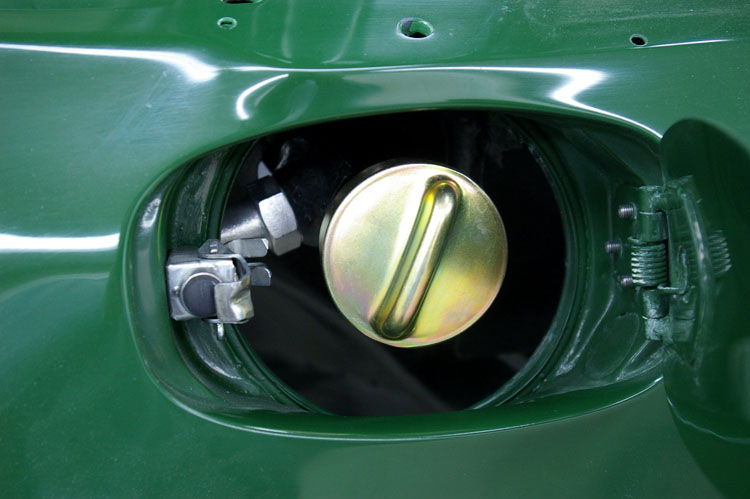

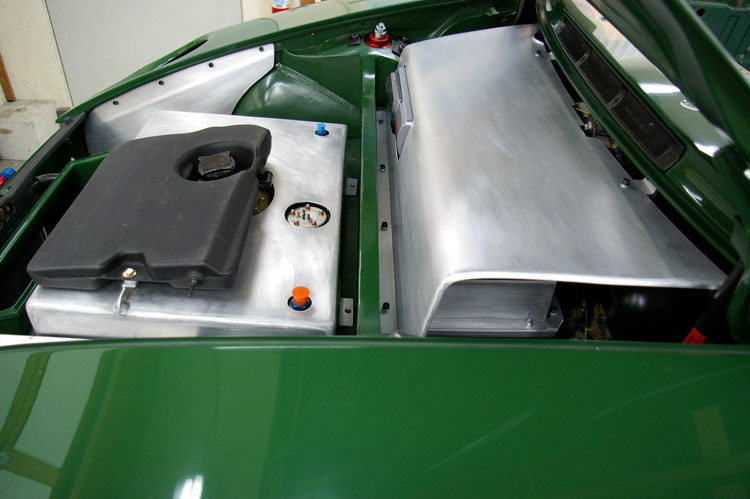

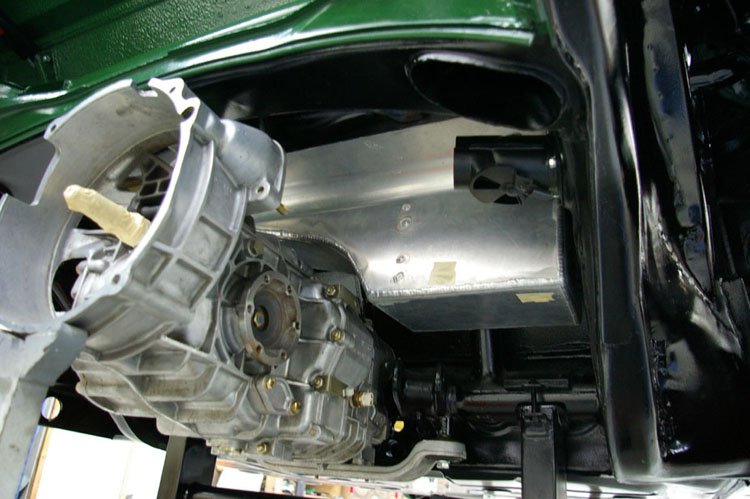

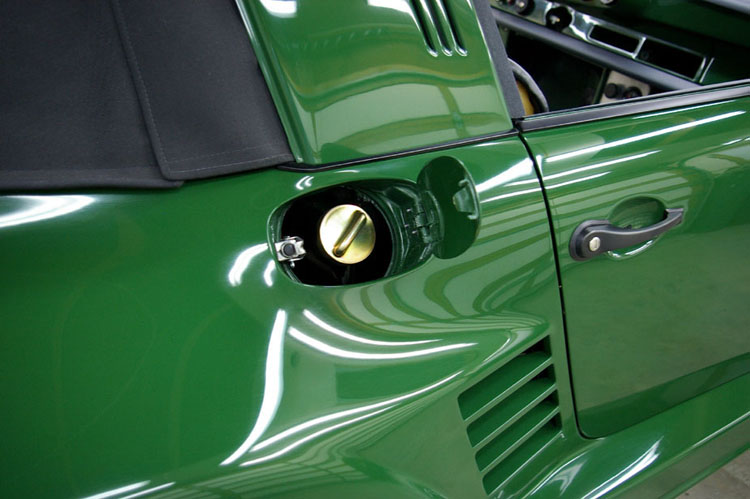

(1) Oil tank mounted chassis tube sub frame location to gearbox. (2) Oil tank and battery placed in chassis tube sub frame and mounting brackets. (3,4) Oil tank filler tube and quarter panel access door location. (5,6) Aluminum fuel cell cover and components.

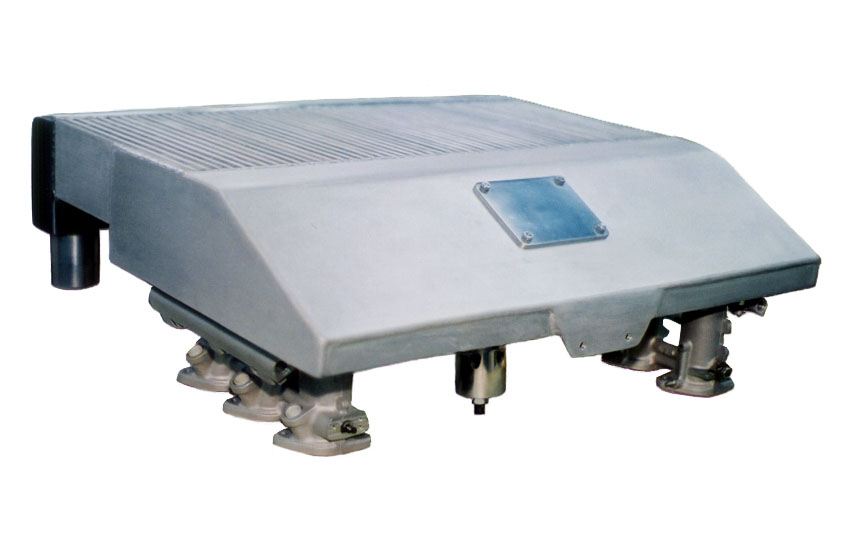

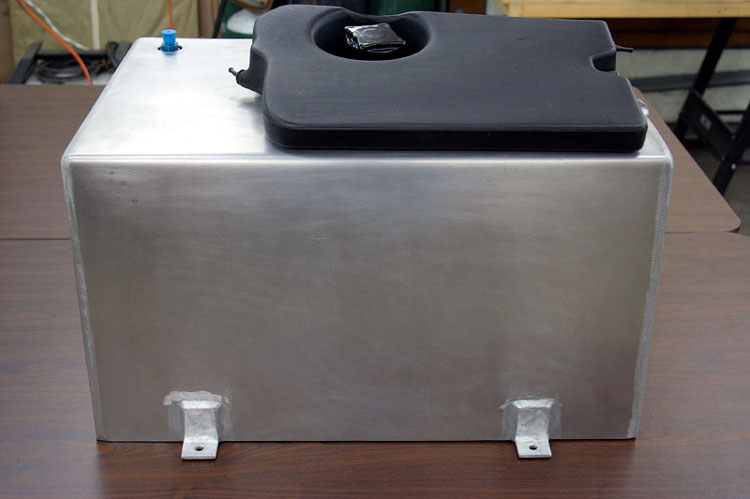

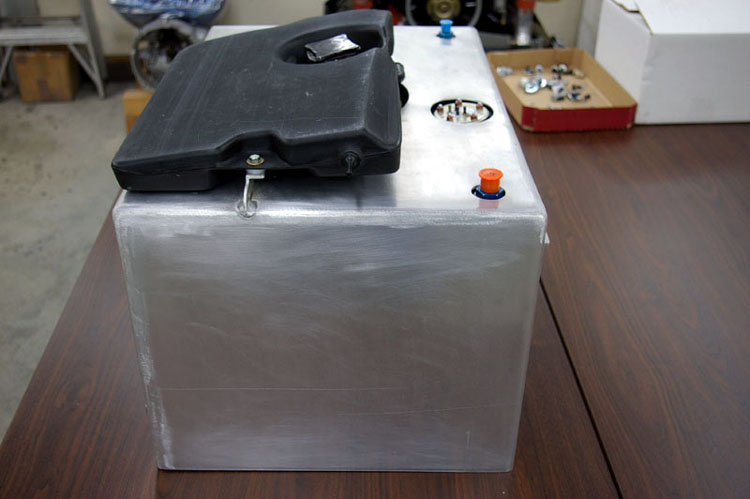

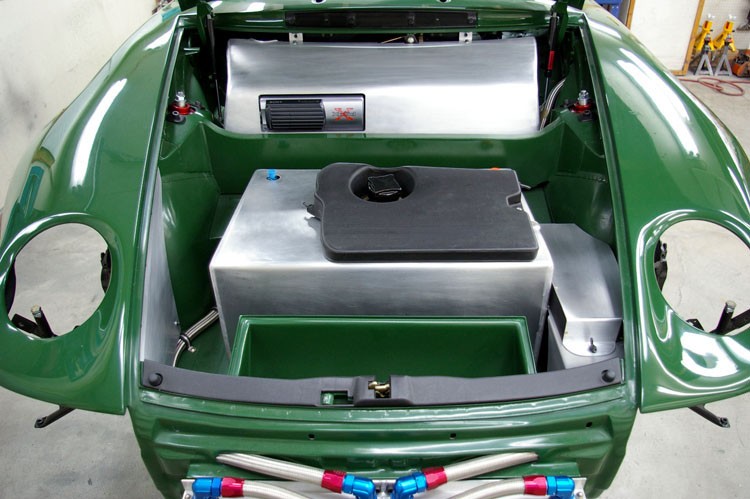

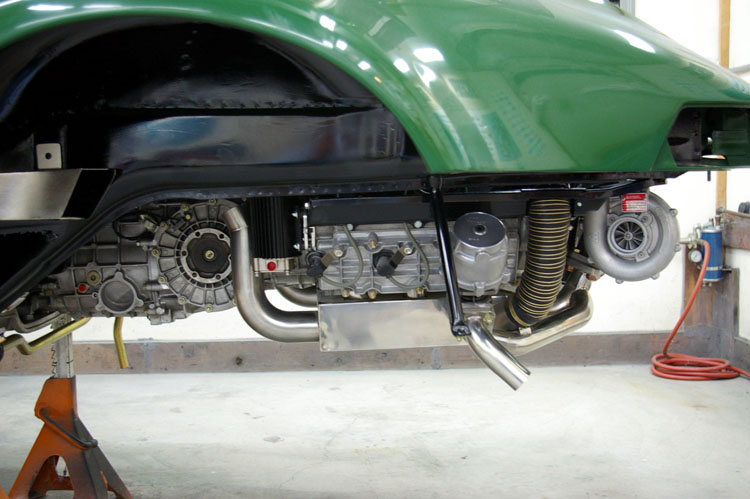

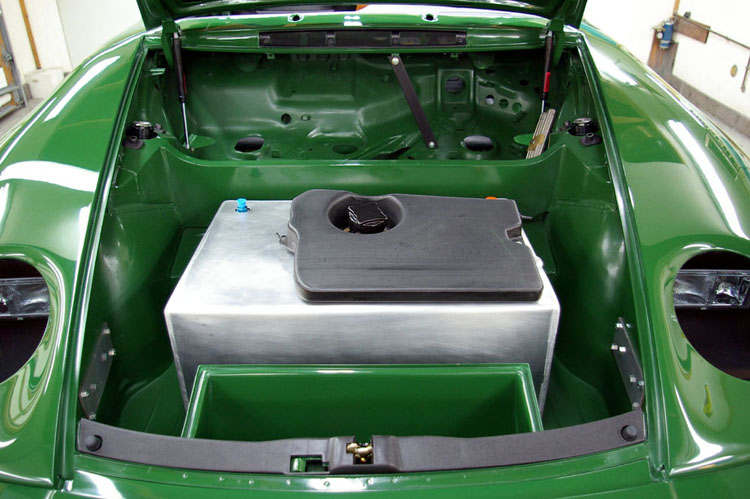

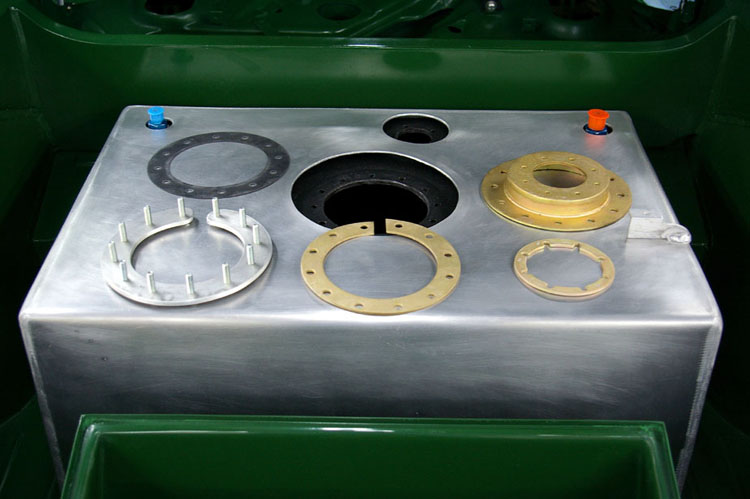

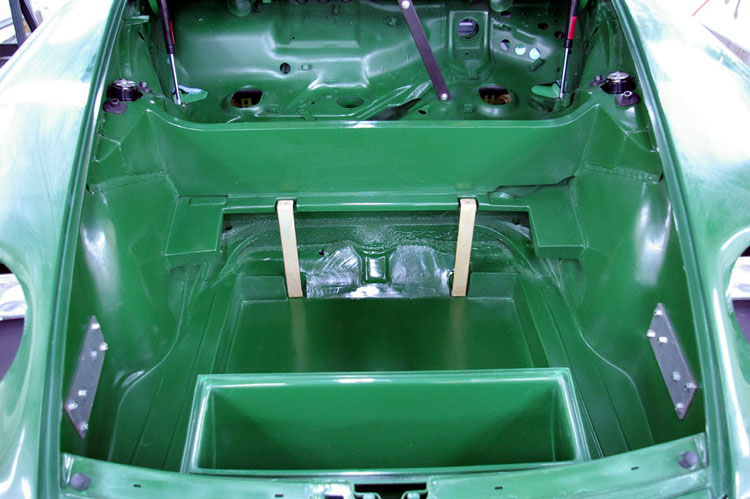

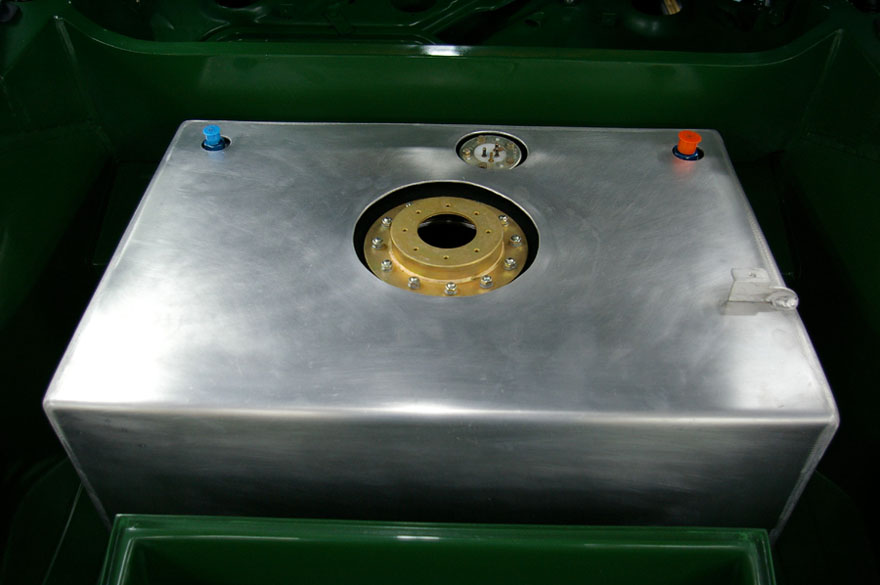

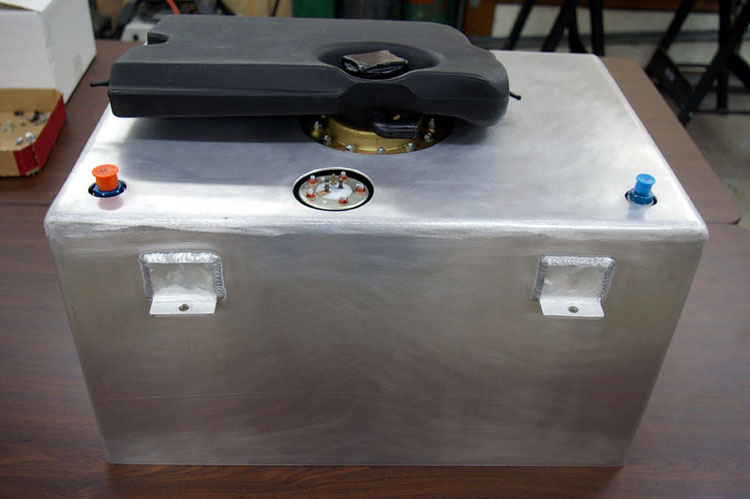

(1,2,3) Assembled fuel cell with front & rear chassis mounting brackets, filler, and fuel gauge sending unit. (4) Fuel cell mounted to chassis. (5) 911 & 930 intercooler-plenum-injection assembly. (6) Twin turbocharged 930 engine mounted location in frame and chassis.

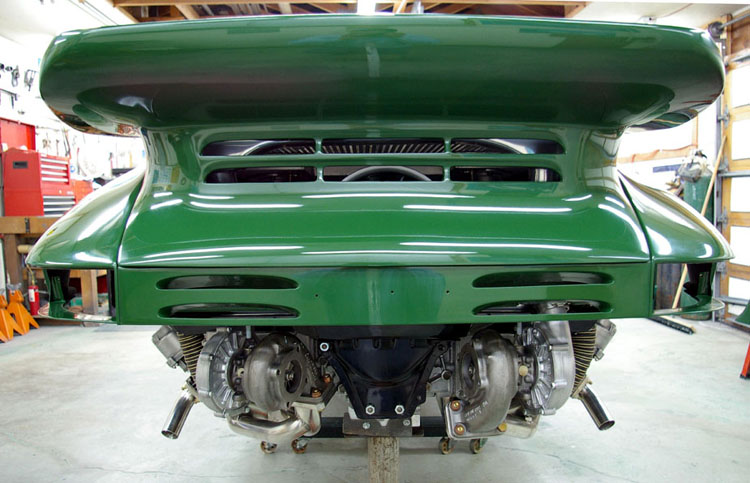

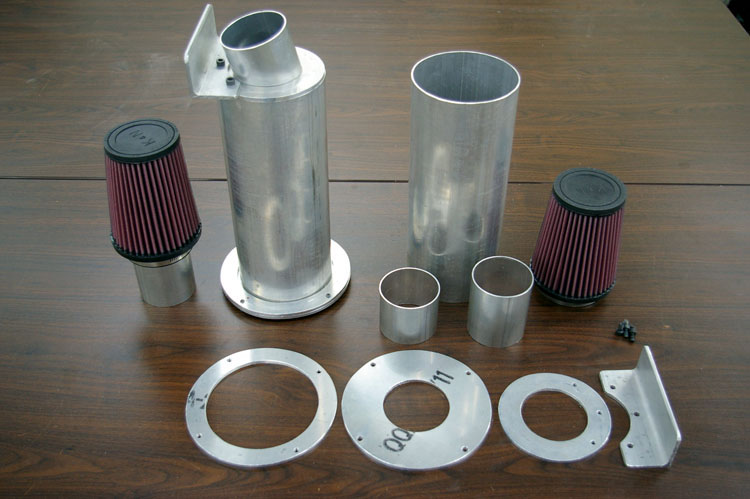

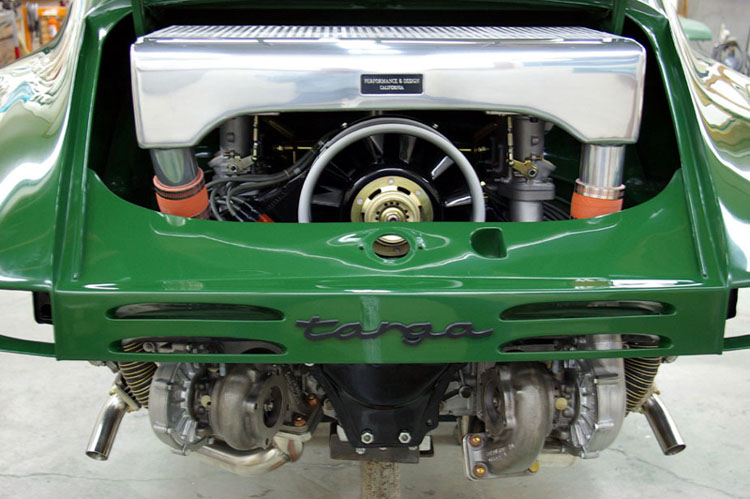

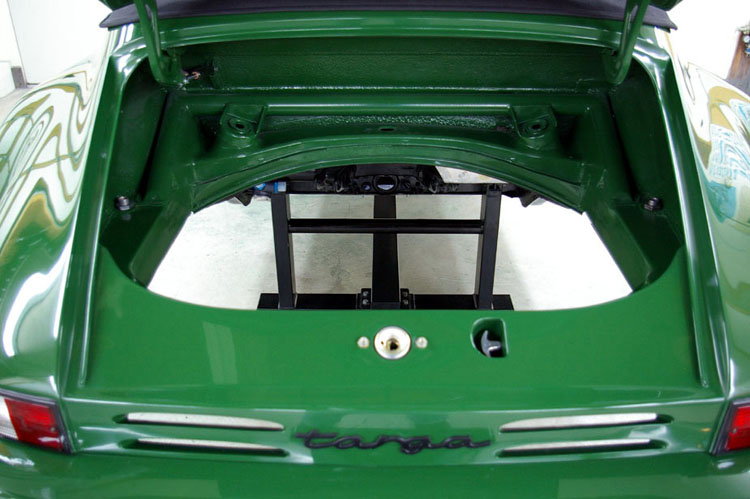

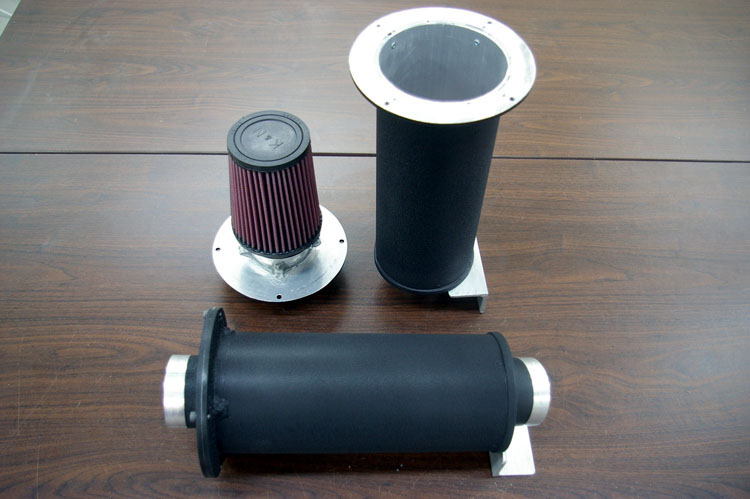

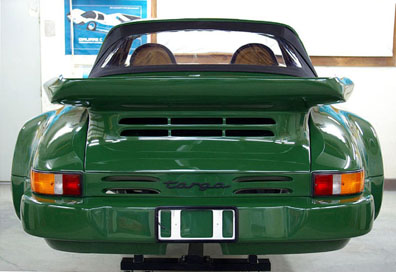

(1) Twin turbocharged 930 engine mounted location to air scoop full-flow vented tail & rear latch panel. (2) Chassis location of turbocharger air induction & rear brake rotor cooling ducts and turbocharger intake location for connection to induction air cleaners. (3) Turbocharger induction air cleaner components. (4,5) Completed turbocharger induction air cleaners. (6) Turbocharger induction air cleaner system assembly.

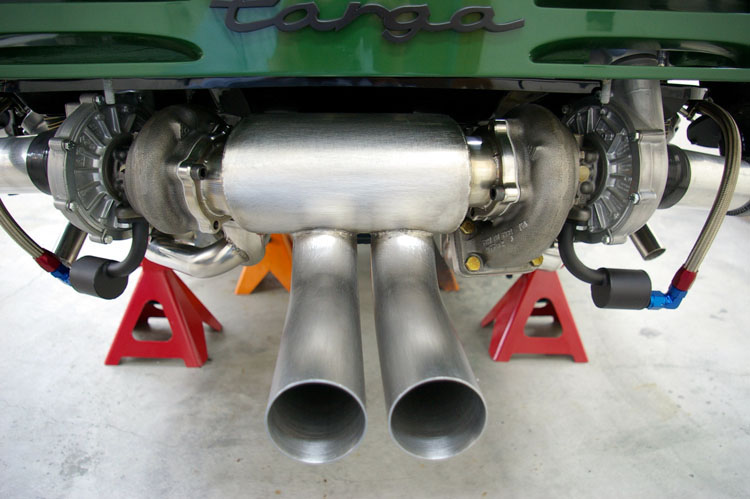

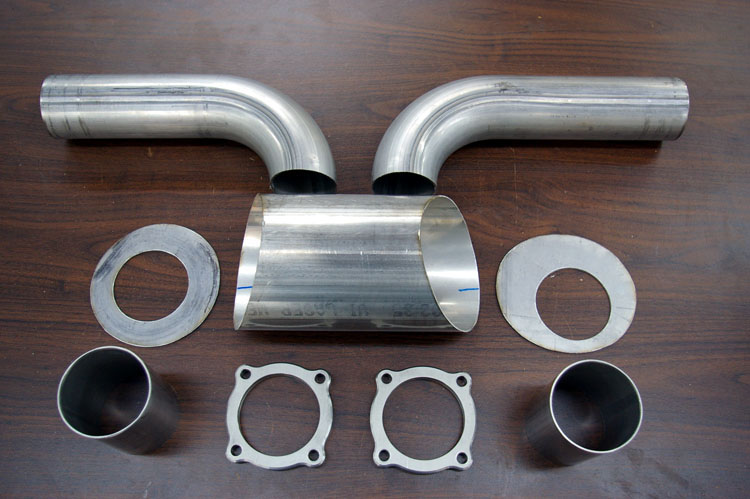

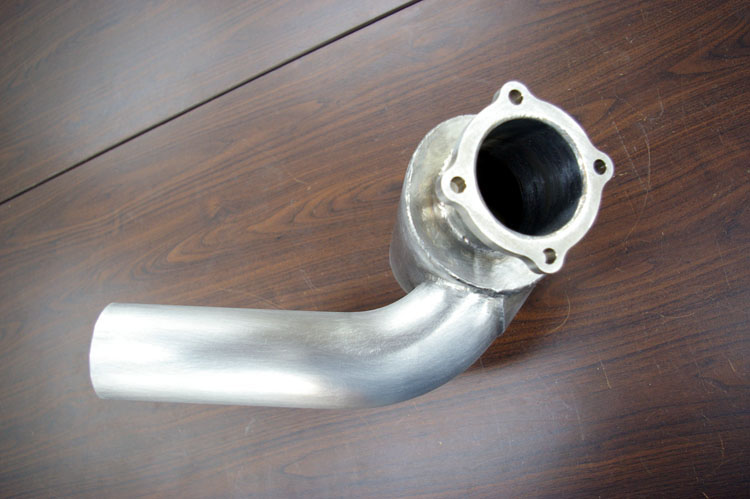

(1,2) Twin induction air cleaner system assembly to turbochargers. (3) 930 twin turbocharged stainless Sport muffler components. (4,5) Completed twin turbocharged Sport muffler. (6) Sport muffler assembled to twin turbochargers.

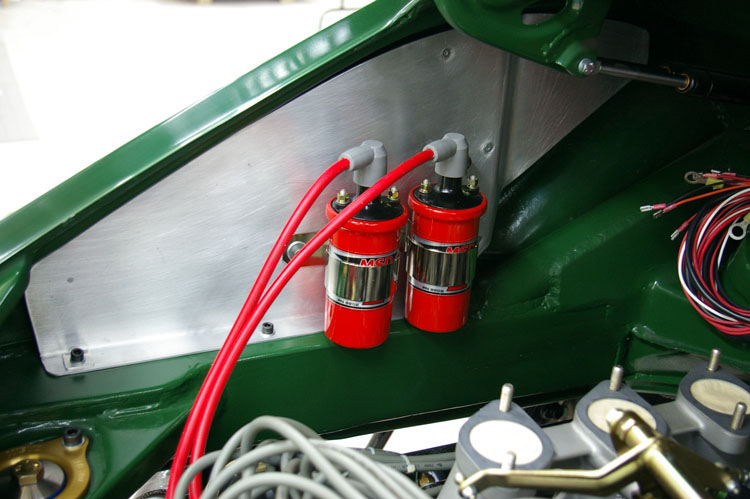

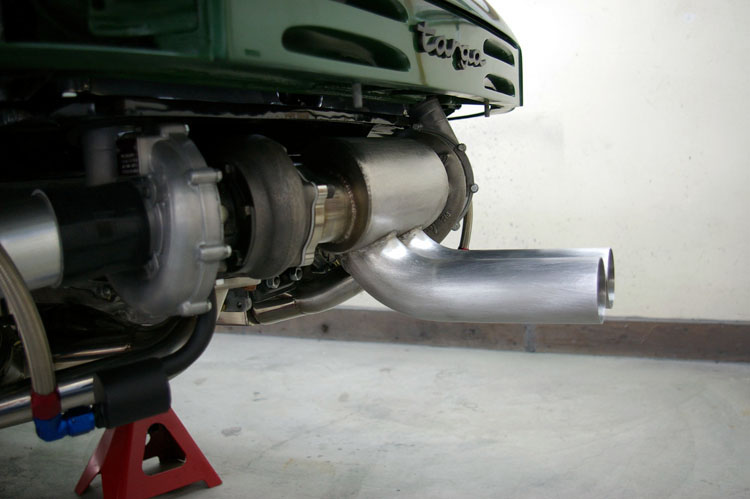

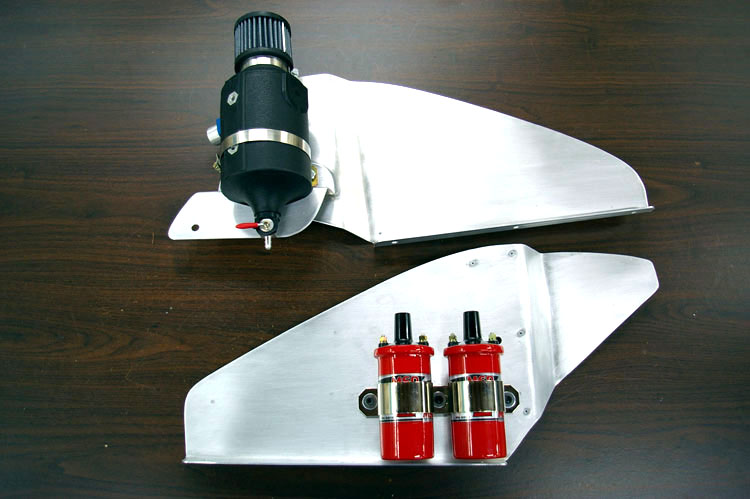

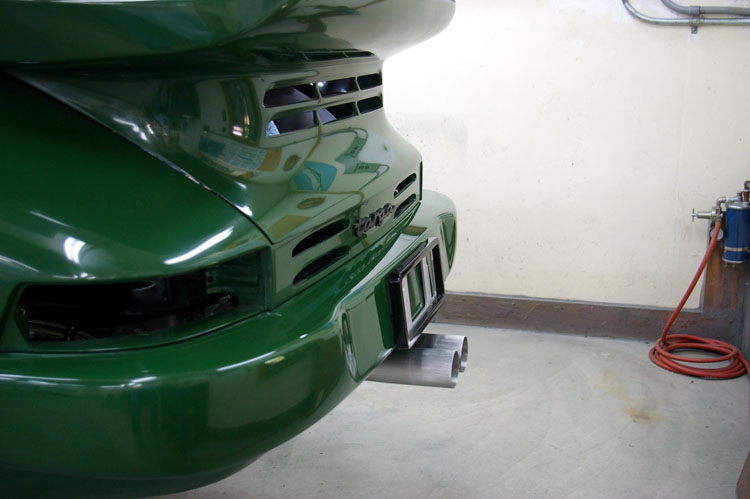

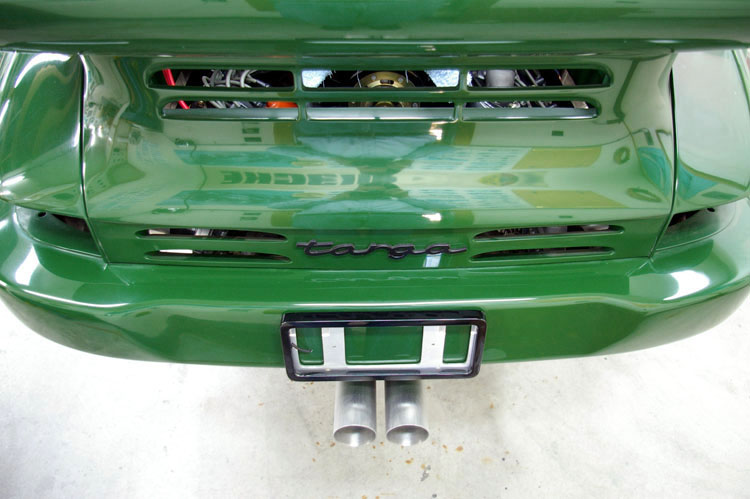

(1) Sport muffler assembled to twin turbochargers. (2,3) Location of  Sport muffler to rear bumper assembly. (4) Engine compartment aluminum panels for placement of ignition components, oil tank breather, etc. (5,6) Engine compartment component  panels mounted to frame and chassis location.

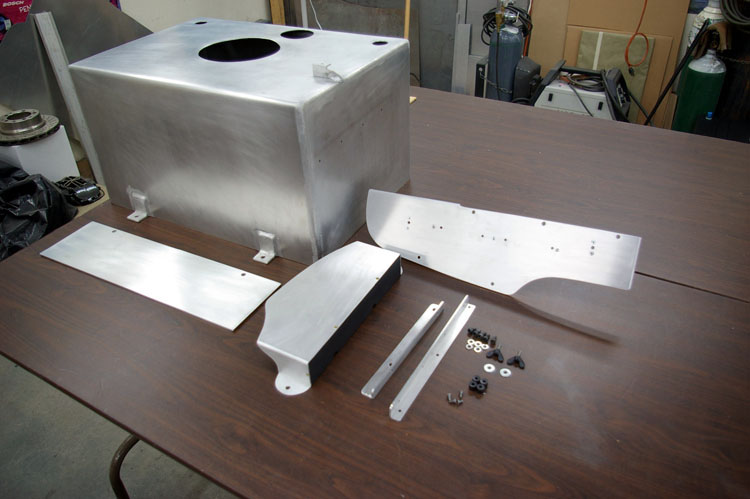

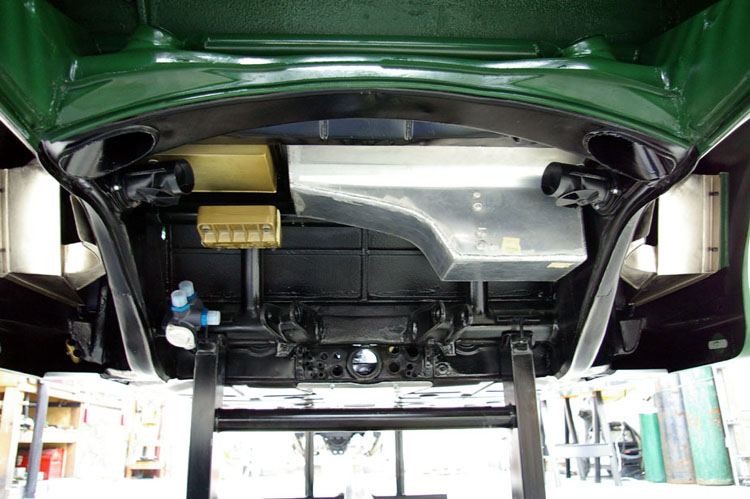

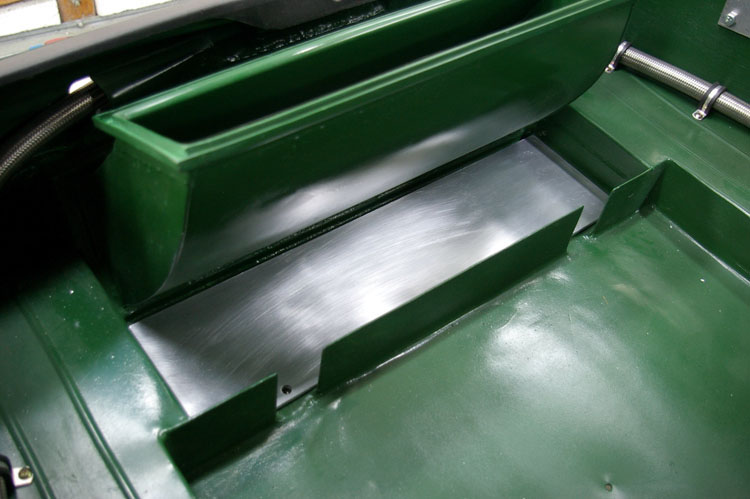

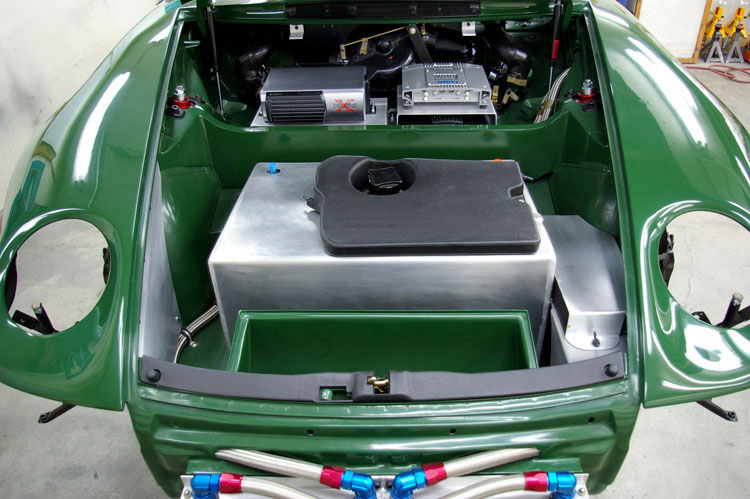

(1)  Front chassis sub frame aluminum plate mount for fuel pumps. (2) Fuel cell cover and other aluminum panels & brackets for mounting fuel pumps, electronics, and electrical. (3,4) Fuel cell cover and chassis bracket location for mounting fuse panel. (5,6) Mounted fuse panel and access cover.

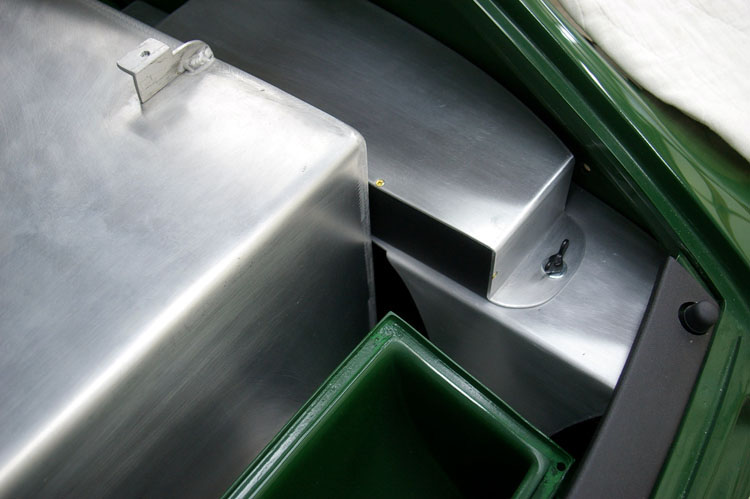

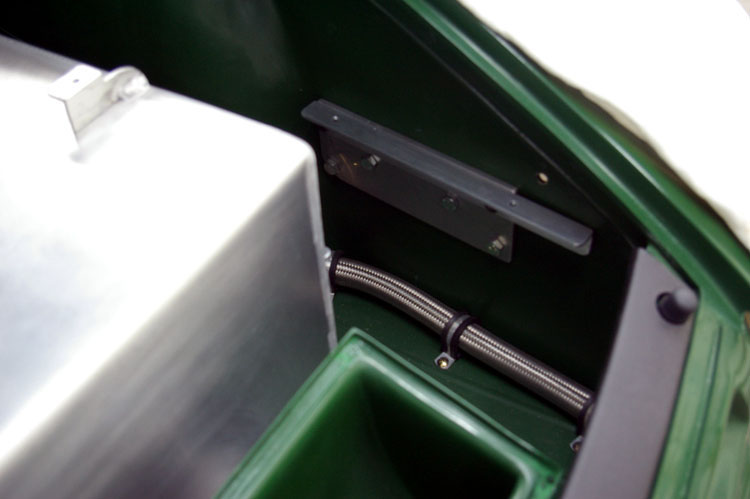

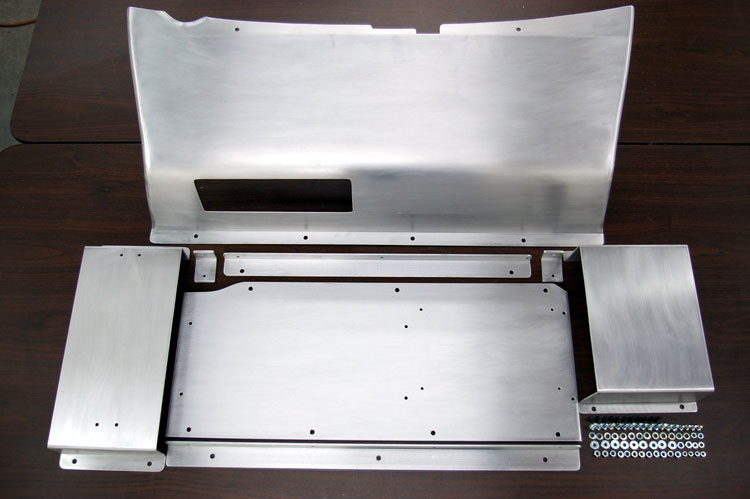

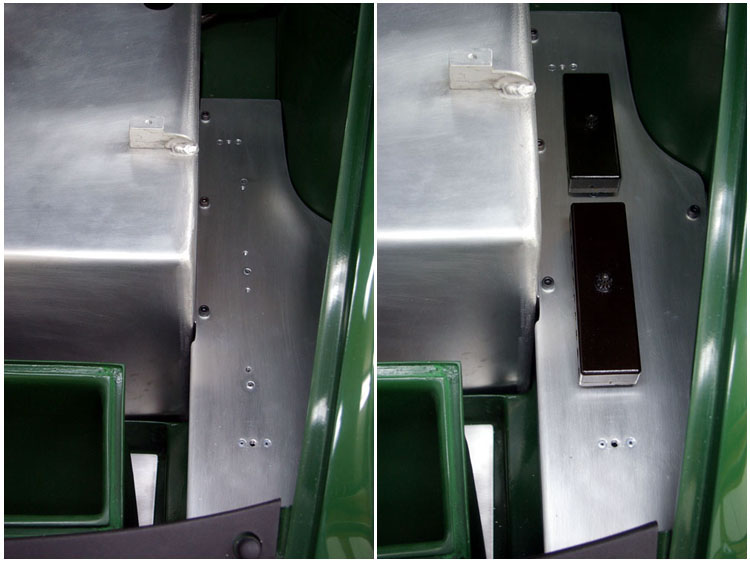

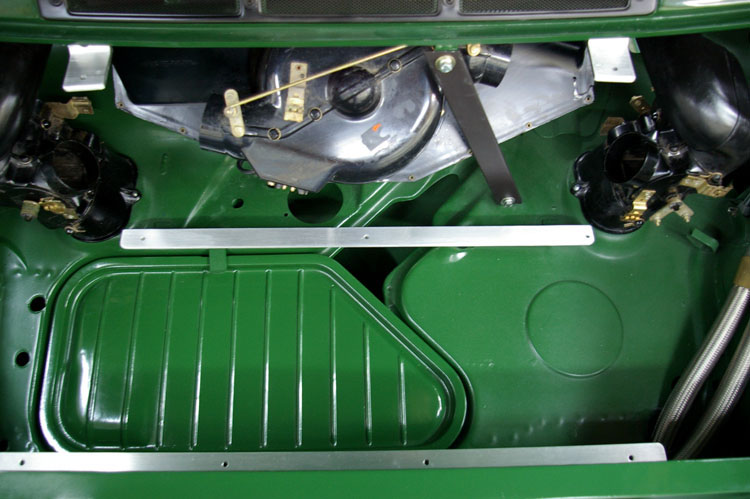

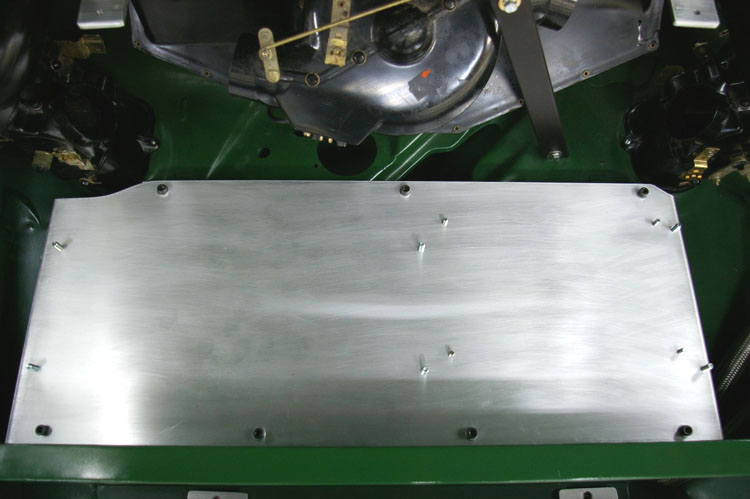

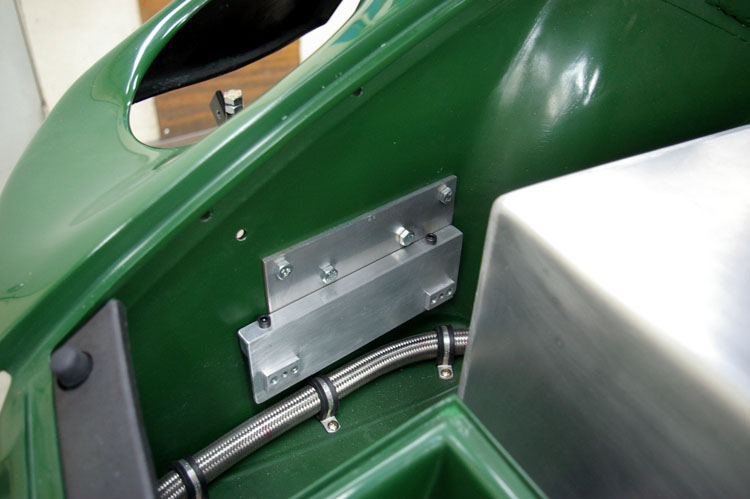

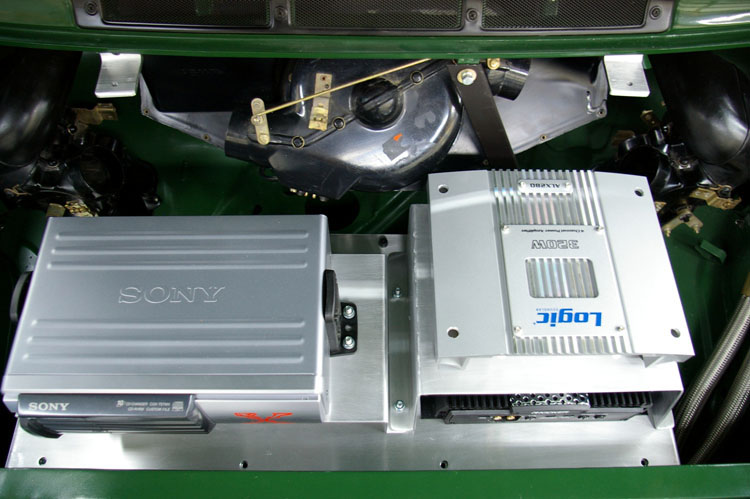

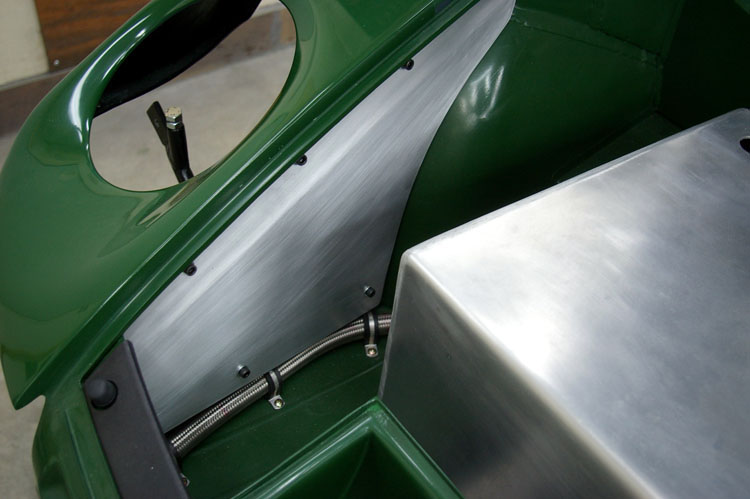

(1) Front electrical panel and mounting brackets. (2,3) Electrical panel brackets and electrical panel mounted to the chassis. (4) Aluminum panels, mounting brackets, and access cover for placement of sound system components. (5,6) Location of sound system brackets and bottom support panel.

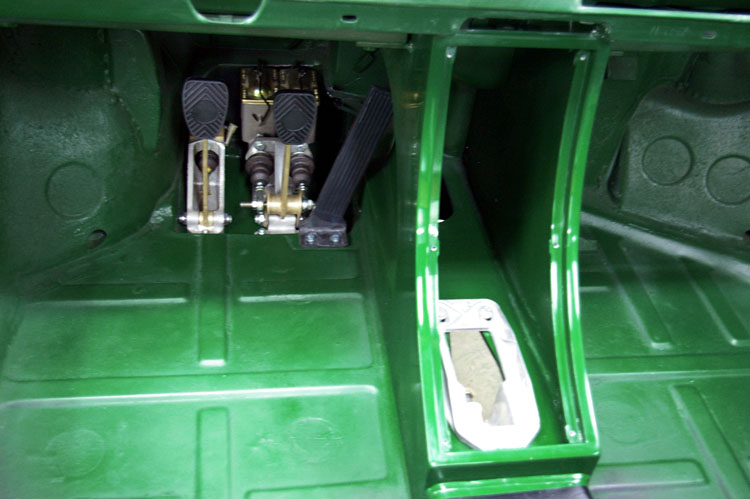

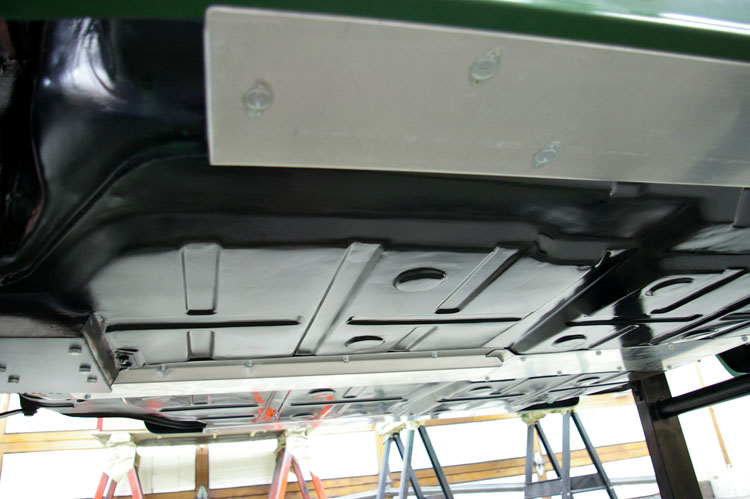

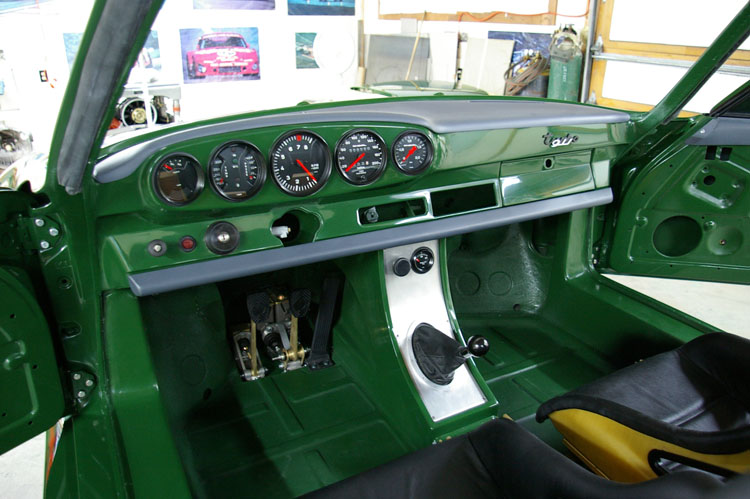

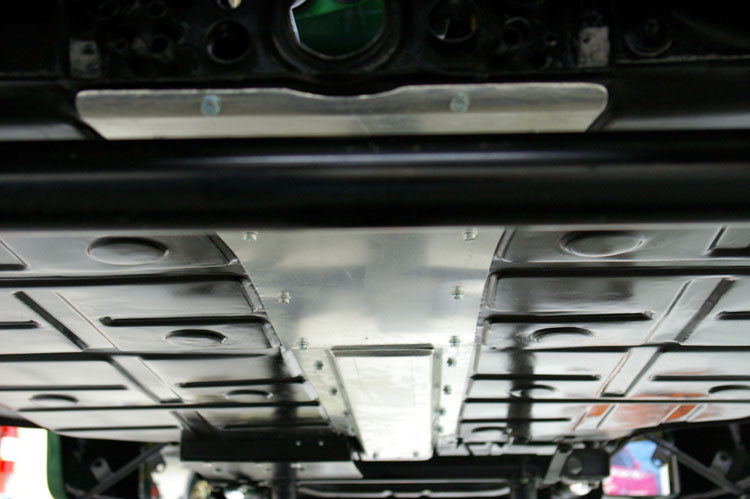

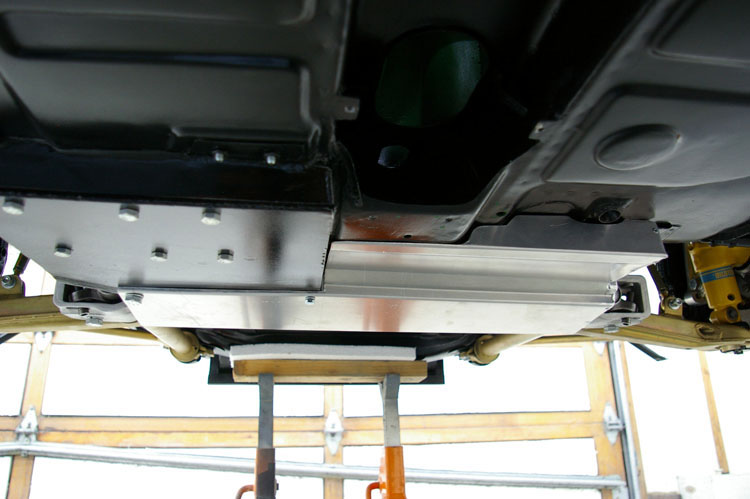

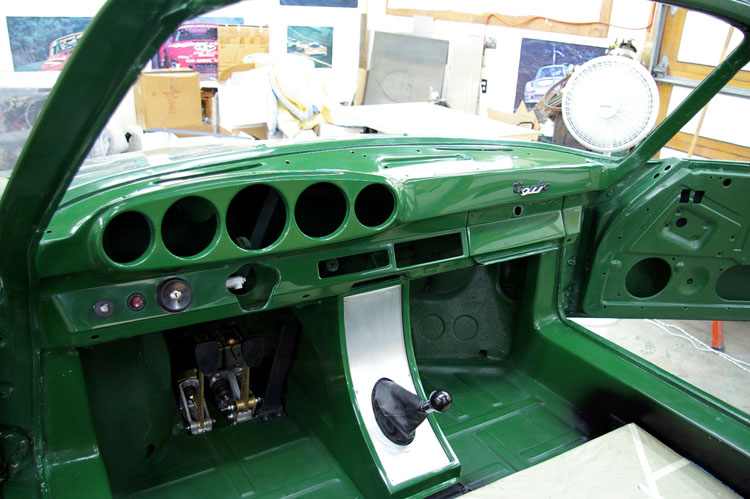

(1)  Pedal assembly mounting plate boxed pan. (2,3) Chassis aluminum panel tunnel and rocker access covers. Sport dash, square steel tubing Sport console/chassis brace, rectangular tubing reinforced chassis longitudes. Fiberglass Sport dash cover, steel knee pad frame, and door panel trim, which can be covered in either leather or vinyl.

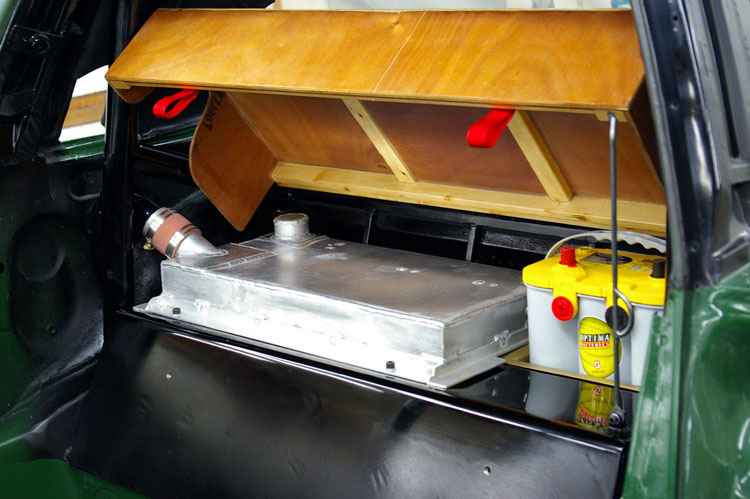

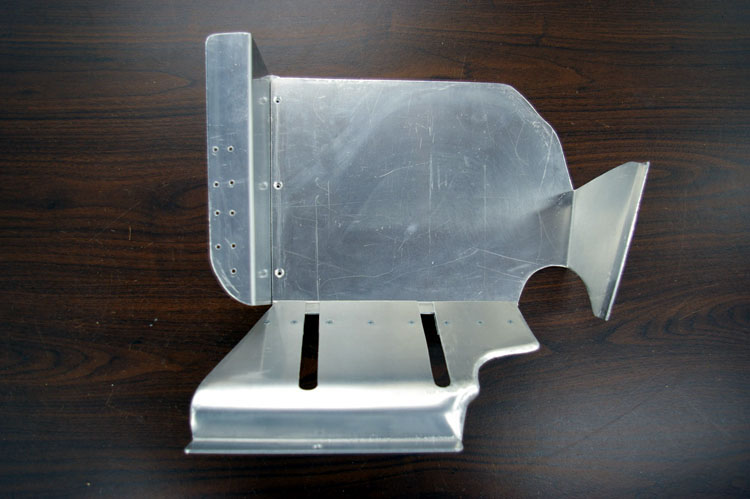

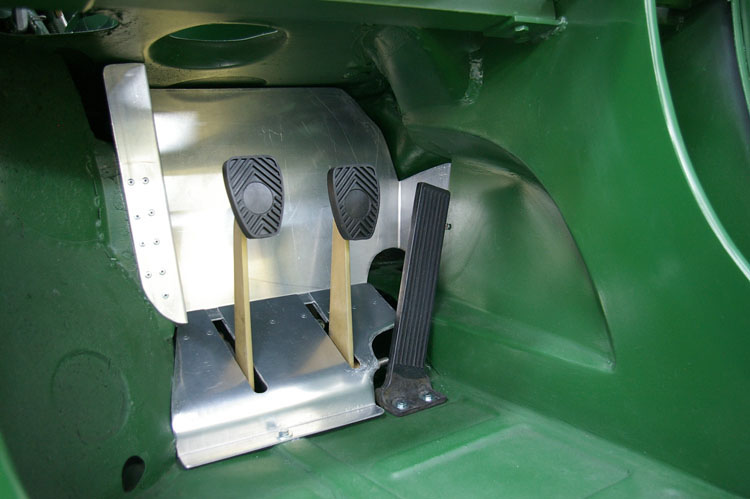

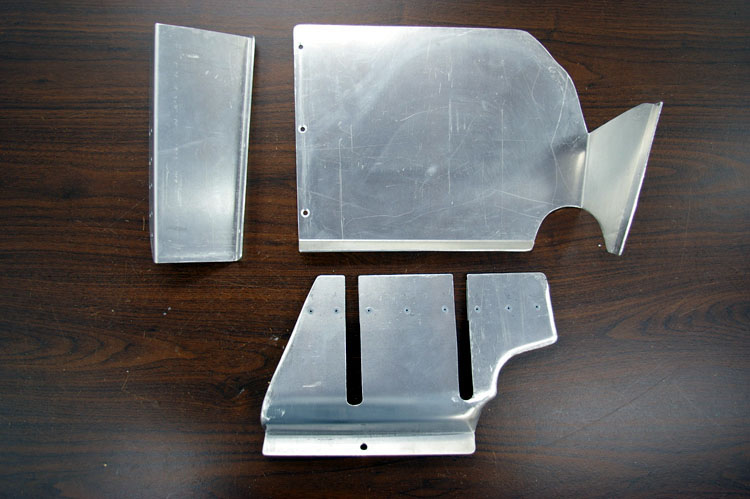

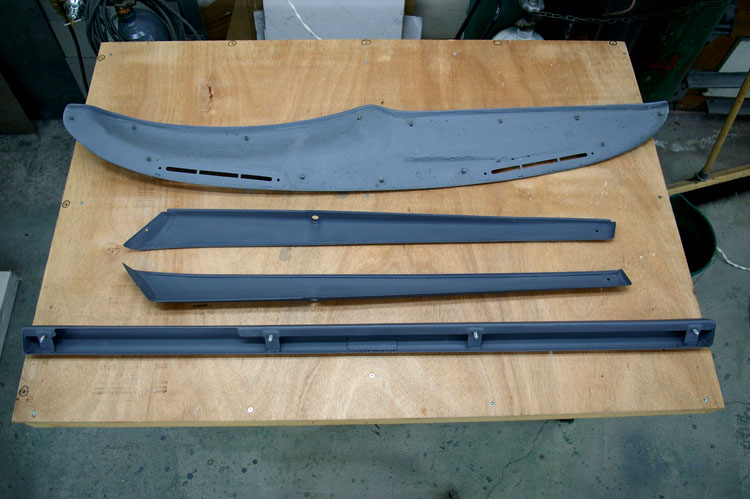

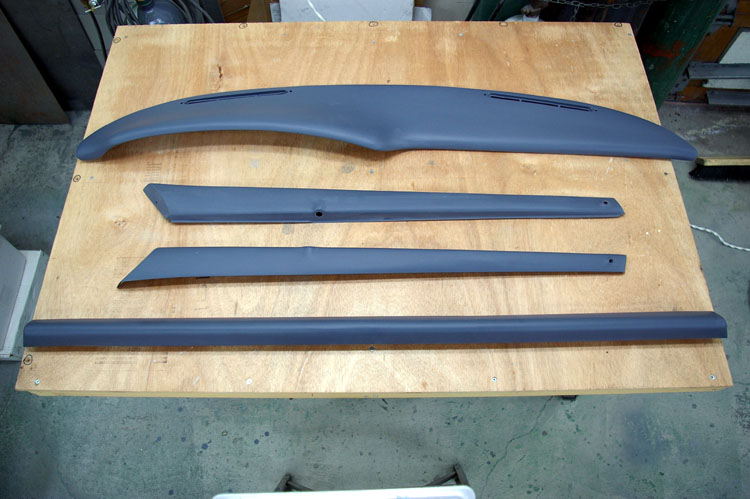

(1) Bare fiberglass Sport dash & trim components. (2) Sport dash & trim, which can be covered in either leather or vinyl. (3,4,5) Pedal assembly slip-together aluminum cover, which removable carpet is attached. Hinged, resign coated reinforced wood compartment cover for  oil tank & battery, which can be covered in either carpet (different clearance specs), leather or vinyl.

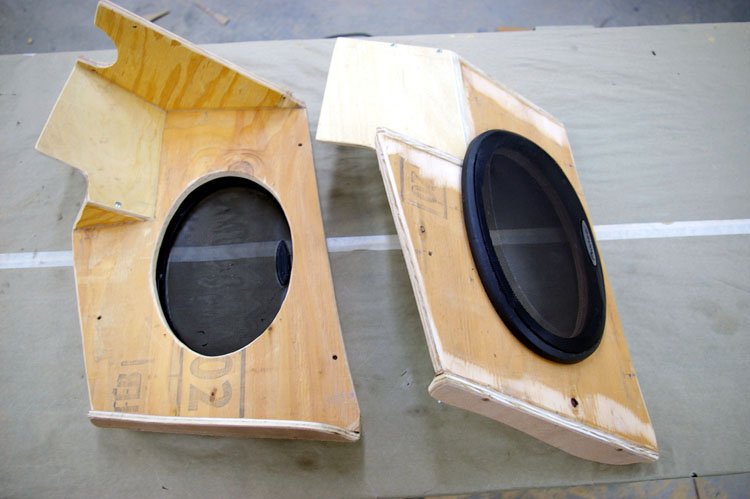

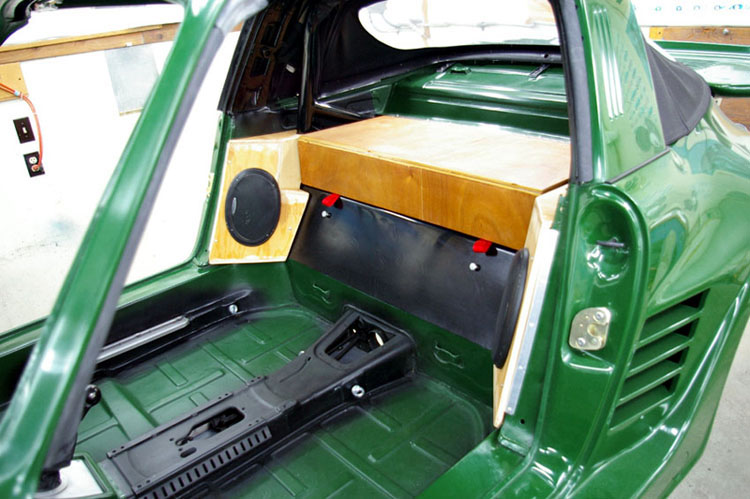

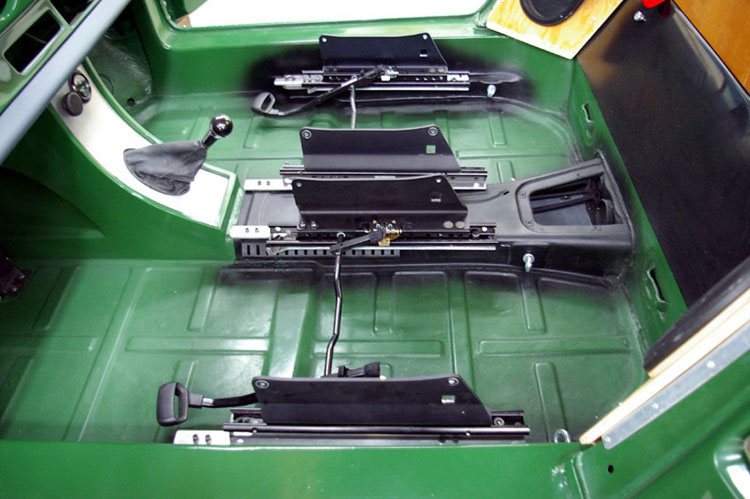

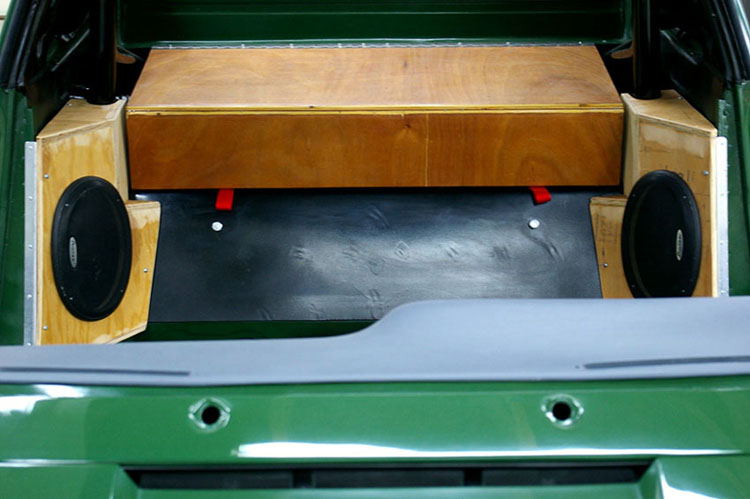

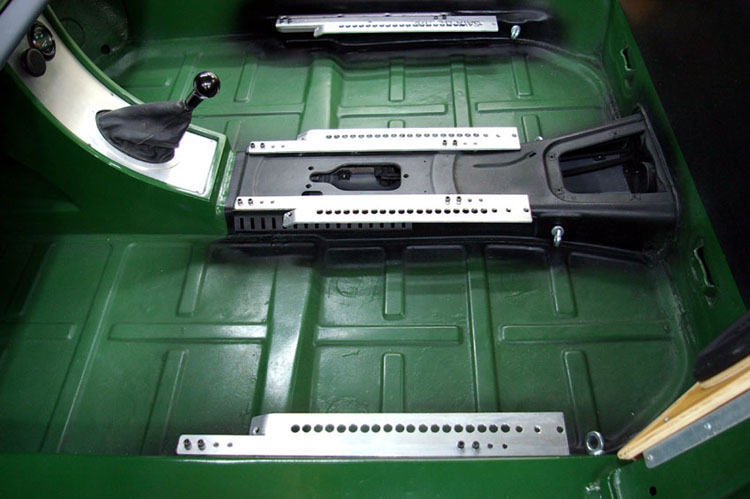

(1) Wood oil tank & battery compartment cover, and speaker box aluminum bracket locations. (2,3,4) Speaker boxes, which can be covered in either carpet (different clearance specs), leather or vinyl.  (5&6) Aluminum seat adapter plates & mounts.

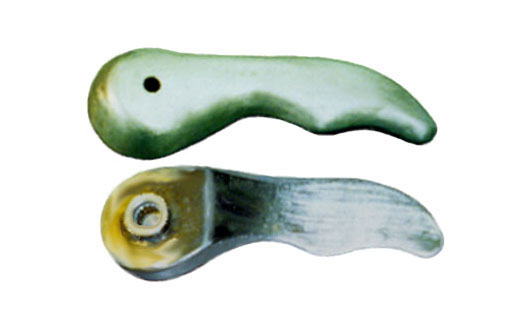

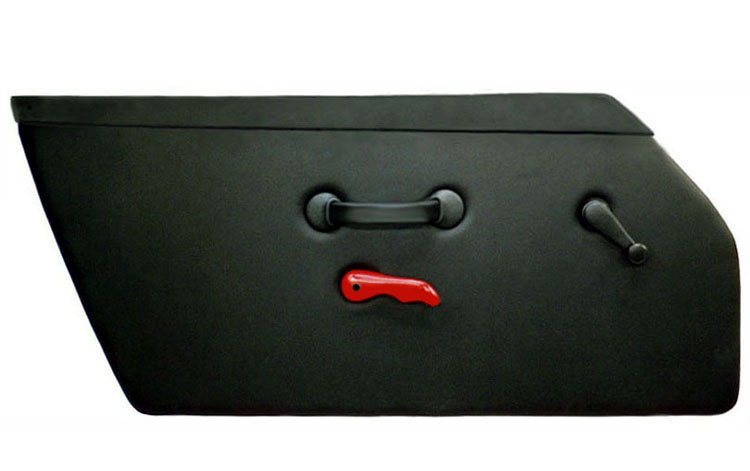

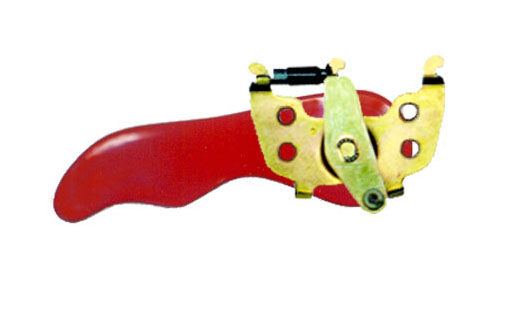

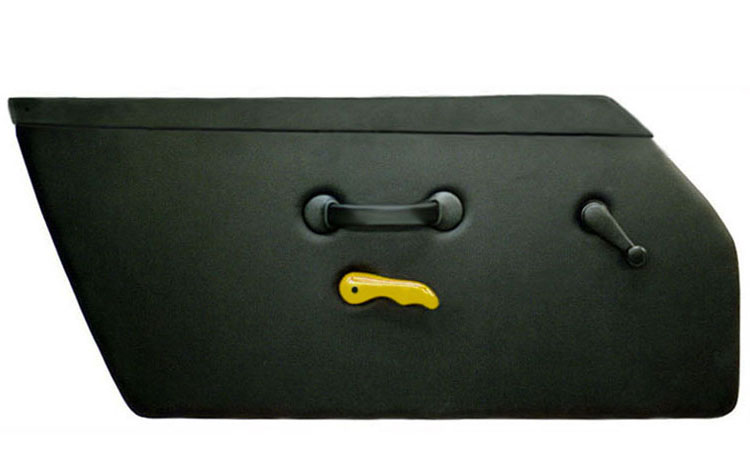

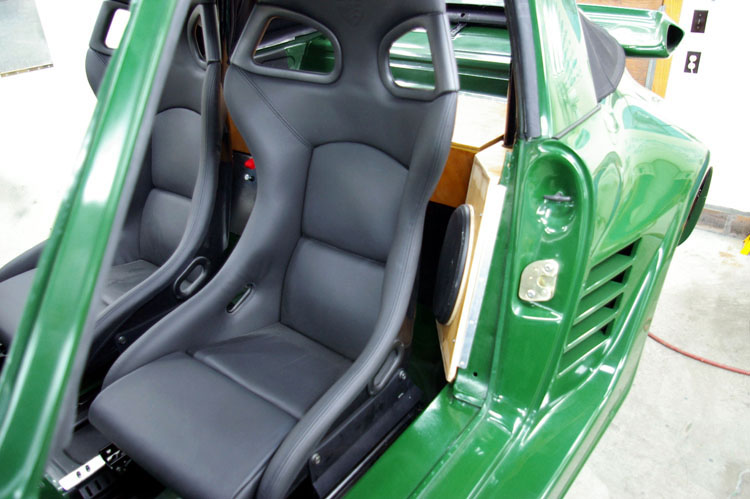

(1) Adapted seat location to speakers and to oil tank & battery compartment cover. (2) Front and back of formed sheet metal Sport door handles. (3) Powder coated finished handles showing door latch lever securing machine screw & access cover, and door panel washer. (4) Sport handle and door latch lever. (5,6) Red and yellow Sport handles shown with assembled Sport door panels, which can be covered in either leather or vinyl.
