Mil Spec Carry Handle
Sight Tower Guide Pin...
..
The above tower guide pin
is made from a suitable size
machine screw or a partially
threaded machine screw. Guide
pin requires a new access for
the elevation wheel spring and
bearing. How to pictured below.
..
Wearing eye protection remove
the screw head. Use a drill, file
etc. to remove threads until pin
fits the sight tower bore. The
guide pin should have a squared
shoulder between the ground
portion and threaded portion.
..
Note: Tap should be metric if
a screw with SAE threads is
used and vise versa. An
interference fit is needed
to stabilize the pin.
..
To thread the handle bore use
a drill press, manually turn the
chuck while feeding the tap.
 ..
Pin threads must not protrude
above or below the threaded
bore. Pin length should not
interfere with the flip sights.
Use a suitable size tap to
achieve a snug thread fit i.e.
metric tap, US pin threads.
..

..
Check elevation operation for
pin interference. Next apply
Red Loctite to pin threads.
Check elevation operation
again before the Loctite sets,
elevation wheel should click
and park on the 3/6 notch.
 ..

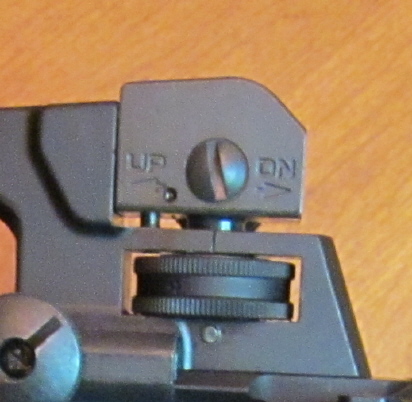

Guide pin above, elevation
wheel spring/bearing mod
below takes time and involves
small parts and springs. Best
to have some experience
working on carry handles.
....

.
 More Carry Handle Help...
..

..

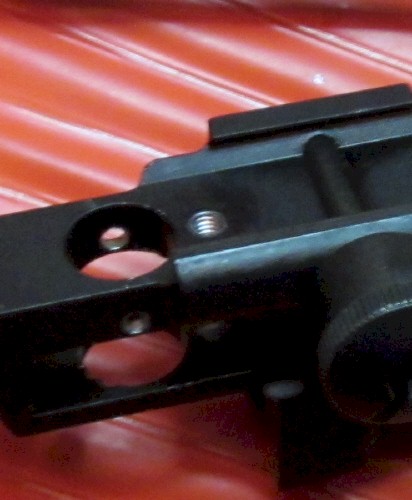

To install the spring and bearing
easily in a Mil Spec Carry Handle
drill the spring bore to a set-depth
leaving ample material for the
bearing. Thread the bore to fit a
M4mm x 3mm set screw with a
2mm hex drive. Spring length
may need to be shortened,
adjust tension with set screw.
.

.
Removing Side Play...
..

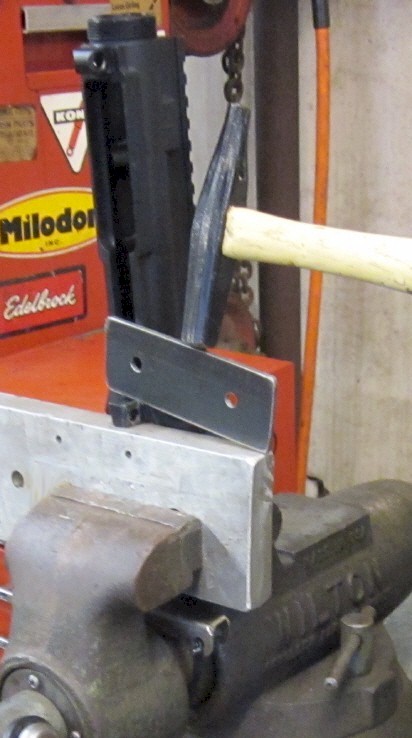

To remedy receiver side play
spot flare the inside edges of
both lugs as shown. Example:
Measure upper takedown pin
lug width at point to be flared.
Next measure opening between
 lower receiver at the takedown
pin. Subtracting measurements
determines play. Divide play in
half and add to upper lug width.
..
Next spot flare one side of the
lug. File flare until close to lug
width plus the half play measure.
Flare the opposite side and file
until the measurement between
flares is close to lug width plus
 the total play measurement.
Touchup with Aluminum Black.
..

.

.
Easy Does It...
..
To avoid breaking a receiver
ear when installing the roll pin
first measure pin diameter and
pin bores, a .005" interference
fit between the two is plenty.
Size pin by file, squeezing, etc.
..

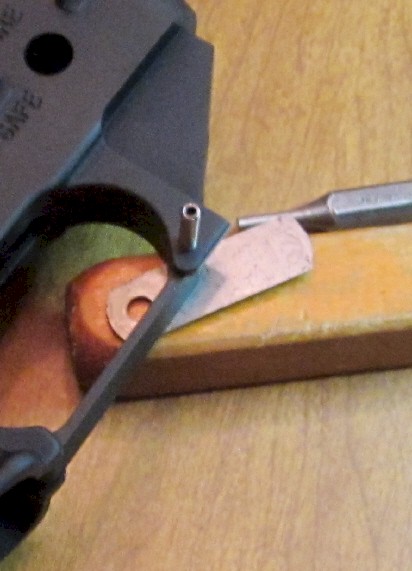

Next install the trigger guard,
insert a snug fitting automotive
feeler gauge between the guard
and receiver ear as shown. Lube
bores, position on wood block,
align bores and tap the pin short
of gauge contact. Move gauge
enough to expose bore and
complete the installation.


.

.....

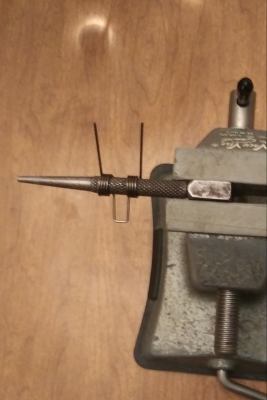

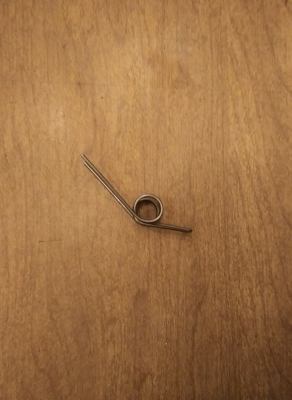

Bending legs on a stiff hammer
spring using a punch or other
tool that fits coils as shown.
..

.

.

....
Below: A slightly loose fitting barrel
can fit snug using high heat spray
paint applied sparingly to the
barrel extension. Mask
 shoulder/pin area, let dry,
lube barrel/receiver.
...

...
